Description
- High Pressure V-Fan (35cm)
- Single Phase
- Reversible
- Bellmouth construction
- Durable Powder Coating
- High Performance
- Able to be used over a range of Ambient Temperature
DETAILS
- Applicable to factory warehouse, restaurant kitchen where big air change is necessary
- Slim design for optimum space utilization and easy installation
- A unique drain mechanism avoids the ingress of water and dust into the motor, facilitating in excellent durability
- High performance totally enclosed motor which prevents the temperature of the motor from rising abnormally
- Can be used over an ambient temperature range from -10 to +50
- Possible to install horizontally or vertically
FEATURES
- Reversible
- Bellmouth construction with distinctive wave-shaped blade
- Durable powder coating

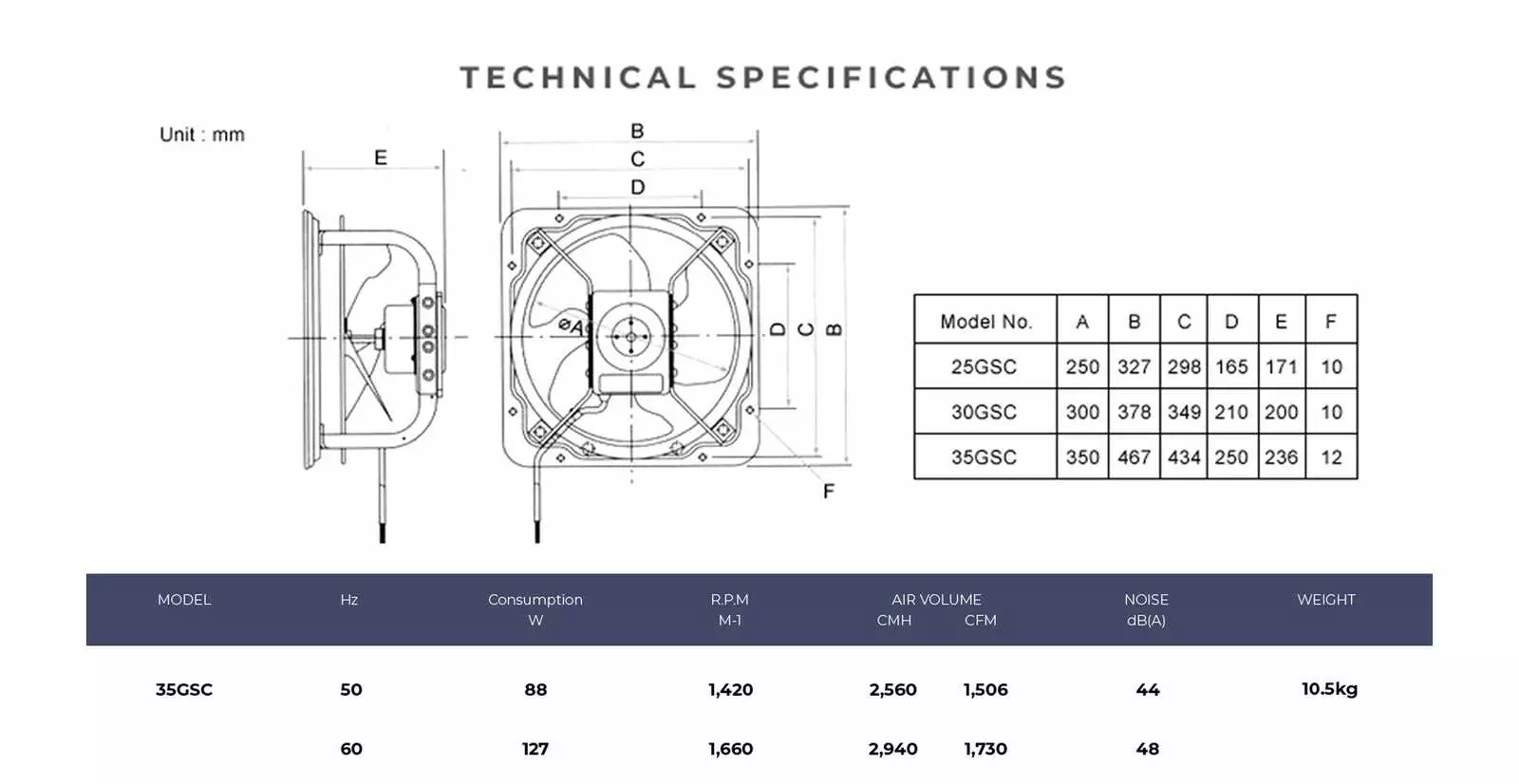

DIMENSIONS
mm
PERFORMANCE DATA
SPECIFICATIONS
Note: The value in Specification tables are representative characteristic value at 220V, 50/60Hz.
| Model | Hz | Consumption | R.P.M | Air Volume | Noise | Weight | |
| W | min -1 | CMH | CFM | dB(A) | (kg) | ||
| 35GSC | 50 | 88 | 1,420 | 2,560 | 1,506 | 44 | 10.5 |
| 60 | 127 | 1,660 | 2,940 | 1,730 | 48 | ||
